Flexible Floor Heavy Duty

Flexible Solid Flooring System is a unique flooring concept that can be applied to lots of different areas when there are high demands. Among other things, including the use of:

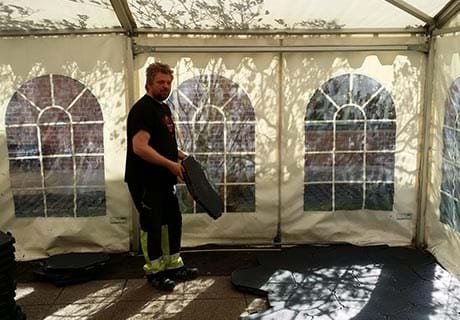

  • Warehouses and tents

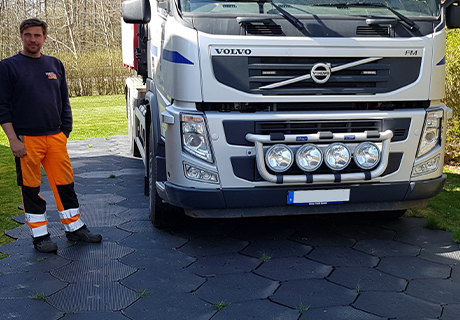

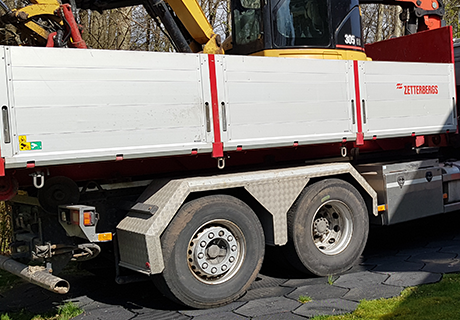

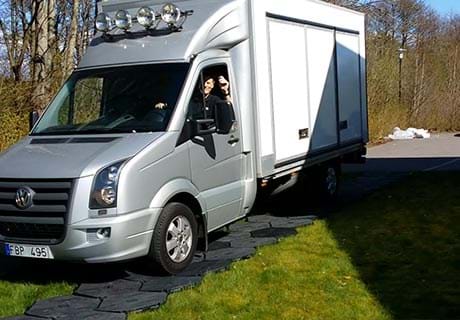

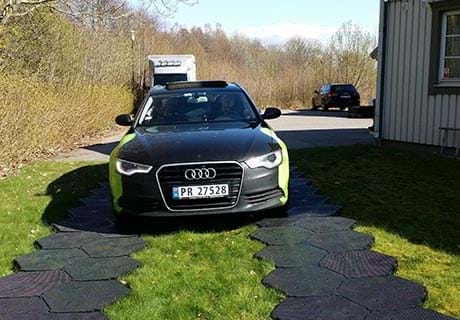

  • Temporary roads and parking lots that involves using the heaviest vehicles
  • Floor for emergencies and conflict areas
  • To ensure availability in connection with building and construction work
  • Protect the meadow by land and forestry
  • Outdoor events and concert venues

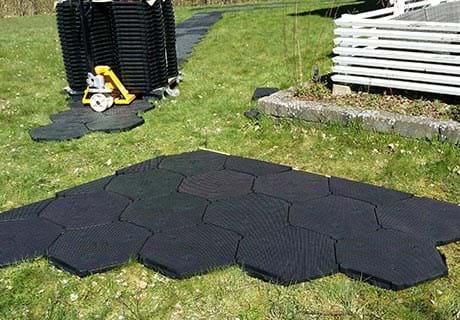

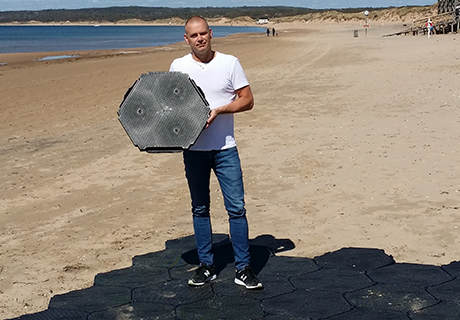

  • Flexible Solid Flooring System can be used on all kinds of surfaces such as grass, sand, and soil surface.



Flexible Solid Flooring System from IP Group consists of three types, Super Light Duty version with load of 2500 kg per. m2, Light Duty version with a load of 5000 kg per. m2 and Heavy Duty with strain on the entire 20000 kg pr. m2

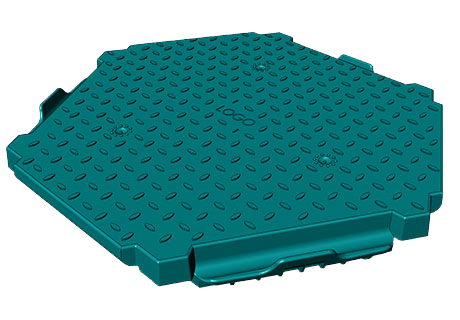

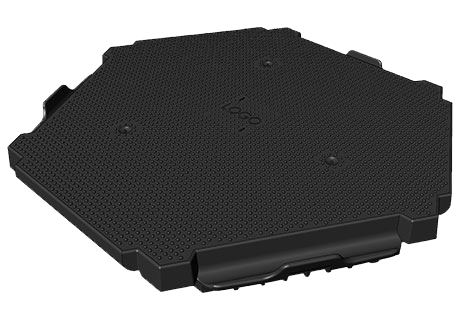

Flexible Solid Flooring System Heavy Duty:

  • 100% recyclat material
  • Weight Load: 20000 Kg / m2
  • Length: 630 mm
  • Width: 575 mm
  • Height: 50mm
  • Weight: 3,1kg

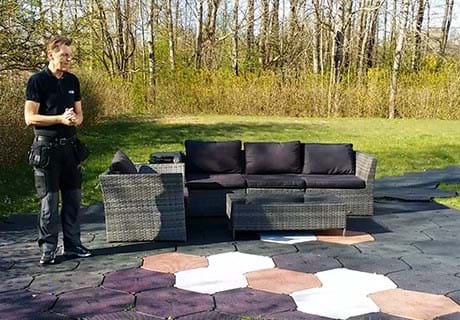

  • Colour: Optional
  • Weight m2: 11.5 kg
  • Temperature: -30 ° C to + 60



Loading on a pallet 1200 x 1000 x 150 mm:

  • 84 pcs base plates (22.68 m2)
  • 1200 x 1200 x 1200 mm (Length x Width x Height)
  • Weight pallet: 260,4 kg
  • Double stack two pallets to a total height of 2400 mm



Loading 20ft container:

  • 1344 pcs base plates (362,88 m2)
  • Weight container: 1344 pcs x 3,1 kg = 4166,40 kg



Loading 40ft container:

  • 3024 pcs base plates (816,48 m2)
  • Weight container: 3024 pcs x 3,1 kg = 9374,40 kg
Read more

Art nr:

FSHG-6357
