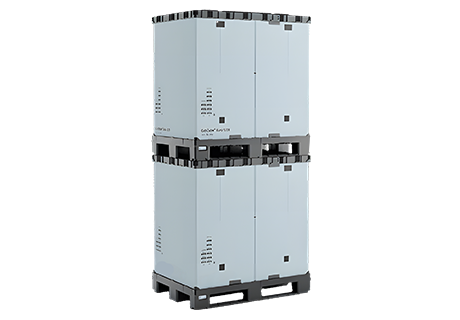

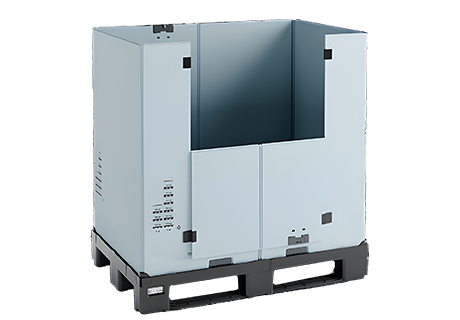

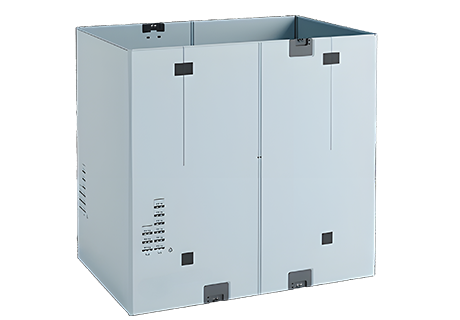

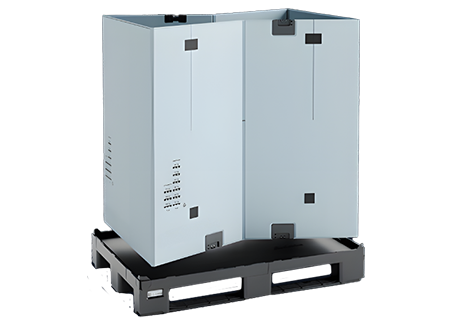

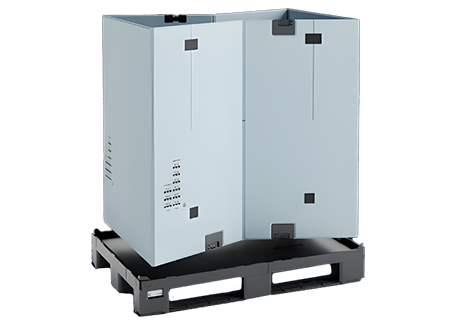

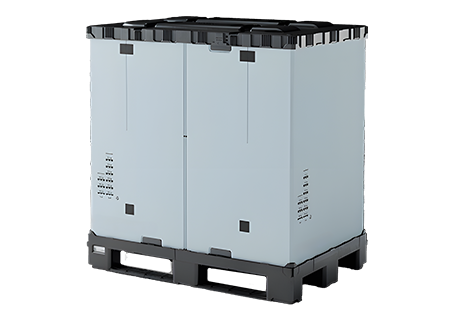

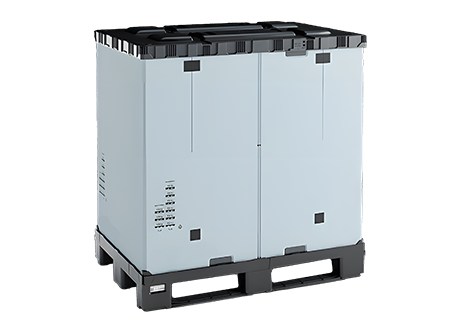

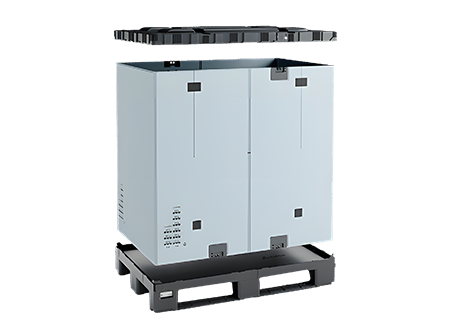

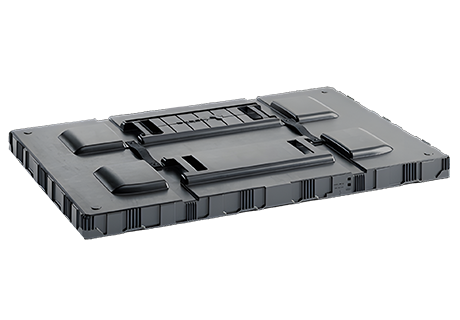

IPG Palletcontainer Z-1208

IPG Pallet Container M 1200x800 is a foldable and robust logistics container designed for efficient, safe, and sustainable handling of goods. It is designed to optimize space utilization, simplify handling, and support automated logistics processes. When the container is not in use, it can be folded down to significantly reduce its volume, helping to lower transportation and logistics costs. A smart choice for companies looking to reduce logistics costs, improve warehouse and transport capacity utilization, and achieve a more efficient return flow.

Technical Specifications:

• External dimensions: 1200 x 800 x 934 mm
• Internal dimensions: 1156 x 756 x 747 mm
• Weight: 40 kg
• Volume: 653 L
• Folded height: 232 mm per stack
• Folding system: M-folding
• Stacking load: 1,500 kg
• Dynamic load capacity: 750 kg
• Pallet racking load capacity: 750 kg

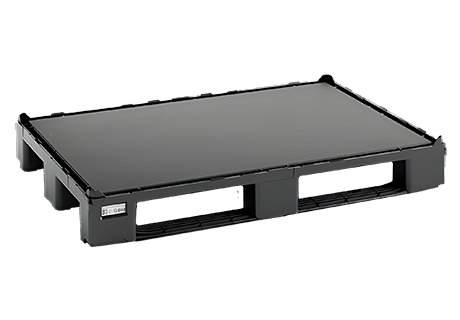

• Solid pallet deck with 3 steel reinforcements
• Stacking factor: 1+5
• Walls can also be manufactured in other heights according to customer requirements
• Minimum order: 1 pallet load (10 units)

Load Capacity:

• Maximum load: 750 kg
• Maximum stacking load: 1,500 kg
• Stacking factor: 1+5

Logistics & Transport:

• Return ratio: 1:5
• Volume reduction: 75%

IPG Pallcontainer Z 1200x800 is a foldable and robust logistics container designed for efficient, safe, and sustainable handling of goods. It is designed to optimize space utilization, simplify handling, and support automated logistics processes. When the container is not in use, it can be folded down to reduce volume and transportation costs. A smart choice for companies looking to lower logistics costs, make better use of warehouse and transport capacity, and achieve a more efficient return flow.

Technical Description:

• External dimensions: 1200 × 800 × 1260 mm
• Internal dimensions: 1156 × 756 × 1074 mm
• Weight: 46 kg
• Volume: 939 L
• Folded height: 262 mm when stacked
• Folding system: Z-folding
• Stacking load: 900 kg
• Dynamic load capacity: 500 kg
• Pallet racking load capacity: 500 kg
• Solid pallet deck with 3 steel reinforcements
• Stacking factor: 1+5.3
• The walls can also be manufactured in other heights according to customer requirements
• Minimum order quantity: 1 pallet (10 units)

Load Capacity:

• Maximum load: 500 kg
• Maximum stacking load: 900 kg
• Stacking factor: 1+5.3

Logistics and Transport:

• Return ratio: 1:5.3
• Volume reduction: 80%

We are looking for a reliable solution to transport goods of up to 250 kg? Look no further than System Classic from IP-Group AS. System Classic is designed to meet a wide range of needs, and with our sturdy and secure IPG pallet containers, we help you optimize your transport volume.

Choose System Classic from IP-Group AS for a simpler, more cost-effective, and safer transportation experience. We're here to assist you in maximizing your logistics efficiency, and our System Classic is the beginning of that journey. Contact us today to discover how we can tailor System Classic to your specific requirements.

Technical Description:

• Outside dimensions: 1200x800x1200 mm
• Inner dimension: 1156x756x1030 mm
• Volume: 622 L
• Tare weight. 29 kg
• Folding system: Classic
• In addition, walls can be produced in other heights according to the customer's preferences
• In pallet racking: No

Loading:

• Loading max weight: 250 kg
• Weight stacking (max): 1150 kg
• Stacking factor: 1+4

Logistic and transport:

• Return rate: 1:4,7
• Volume reduction: 79 %

Pallet container HD-128 in dimensions 1200x800x950 mm is a Heavy Duty Pallet container for heavy loads. A very robust Pall container with a long lifespan. Through Steel Reinforcement, you can use pallet containers in racking systems even with heavy loads. The pallet has a closed deck.

Technical description:

• Outer dimension: 1200x800x950 mm
• Inner dimension: 1156x756x747 mm
• Volume: 653 L
• Tare weight. 46 kg
• Height folded: 245 mm in a stack
• Folding system: Sandwich folding
• High rack (without base): Yes
• In addition, walls can be produced in other heights according to the customer's preferences
• Minimum order quantity: 1 ppl (10 pcs)

Loading:

• Load max: 500 kg
• eight stack: (max): 1250 kg
• Stacking factor: 1+2

Logistics and transportation:

• Return rate: 1:4
• Volume reduction: 75 %

The “One–Piece-Unit“ All In One Pallet Container 1200x800x950 mm distinguished by the connection of pallet, ring, and sleeve. Never before it was so easy to set up and fold a container.  *Superfast folding and built up in 5 seconds, *no more risk of losing components, *improved working environment, *cost-effective packing process

Technical Data:

• Outer dimensions: 1200x800x950 mm
• Inner dimensions: 1156x756x747 mm
• Volume: 653 L
• Tare weight. 48 kg
• Empties height: 245 mm in a stack
• Folding system: Sandwich folding
• High rack (without base): Yes

Loads:

• Payload max: 500 kg
• Stacking load (max): 1250 kg
• Stacking factor: 1+2

Logistics and transport:

• Return rate: 1:4
• Volume reduction: 75 %

Pall container System H-1210, with dimensions of 1200 x 1000 x 990 mm, represents the ultimate storage and transport solution! The pallet container offers versatility suitable for a wide range of applications. System H-1210 is designed with a clever sandwich system that ensures a secure and complete packaging solution, whether the pallet containers are full or empty. Experience perfection in storage and transport with System H-1210 - the choice for those who demand the best!

Technical Description:

• Outer dimension: 1200x1000x990 mm
• Inner dimensions: 1140x940x790 mm
• Volume: 847 L
• Tare weight. 47 kg
• Height folded: 230 mm in one stack
• Folding system: Sandwich folding
• High rack (without base): No
• In addition, walls can be produced in other heights according to the customer's preferences
• Minimum order quantity: 1 ppl (10 pcs)

Loading:

• Load max: 350 kg
• Weight stack (max): 1250 kg
• Stacking factor: 1+3

Logistics and transportation:

• Return rate: 4
• Volume reduction: 75 %

Pall container SYST-1210KL provides you with the ultimate storage and transport solution! With dimensions of 1200 x 1000 x 990 mm, we offer versatile solutions for a wide range of applications. SYST-1210KL is designed to deliver perfect storage and transport solutions. Thanks to the smart sandwich system that allows the containers to be folded, a secure and complete packaging unit is maintained permanently, whether the containers are full or empty. Choose Pall container SYST-1210KL for optimal storage efficiency and seamless transport. A reliable choice for those who demand dependable solutions!

Technical Description:

• Outer dimension: 1200x1000x990 mm
• Inner dimension: 1140x940x815 mm
• Volume: 873 L
• Tare weight. 39  kg
• Height folded: 205 mm in one stack
• Folding system: Sandwich folding
• High rack (without base): No
• In addition, walls can be produced in other heights according to the customer's preferences
• Minimum order quantity: 1 ppl (10 pcs)

Loading:

• Load max: 250 kg
• Weight stack (max): 1250 kg
• Stacking factor: 1+5

Logistics and transportation:

• Return rate: 4.7
• Volume reduction: 79 %

The “One–Piece-Unit“ All In One Pallet Container 800x600 mm distinguished by the connection of pallet, ring, and sleeve. Never before it was so easy to set up and fold a container.  *Superfast folding and built up in 10 seconds, *no more risk of losing components, *improved working environment, *cost-effective packing process

Technical Data:

• Outer dimensions: 800x600x750 mm
• Inner dimensions: 772x572x560 mm
• Loading weight: 250 kg
• Volume: 247 l
• Stackability (empty containers): 210 mm in the stack
• Folding system: Sandwich technique

Loads:

• Payload: 300 kg
• Stacking load: 1000 kg
• Stackability: 1+3

Logistics and transport:

• Return rate: 1:3,25
• Volume reduction: 70 %
• Stackability: 1+3

• Outer dimension: 1800x1200x990 mm
• Inner dimension: 1735x1135x794 mm
• Loading weight: 350 kg
• Volume: 1564L
• Weight: 66kg
• Pallet racking: No
• Weight in stacking: 1350kg
• Stacking factor: 1+3
• Volume reduction: 77%
• min quantity ordering: 10 pcs

• Outer dimensions: 1200x800x940 mm
• Inner dimensions: 1160x760x730 mm
• Wall height: 780 mm
• Height when folded: 230 mm
• Weight: 33 kg
• Dynamic load: 800 kg
• Static load: 1000 kg
• Static double stacking: 600 kg
• Load volume: 700 litres
• Material: PP
• Logistics: 10 pallet places (120x80x240 cm)

Food grade pallet container. Available with or without cargo hatch.

Wall height can be customized to customer requirements.

Available in two L-shaped or U-shaped sections instead of a whole wall section.

• Outer dimensions: 1200x800x1200 mm
• Inner dimensions: 1160x760x1010 mm
• Height when folded: 230 mm
• Weight: 35 kg
• Dynamic load: 800 kg
• Static load: 1000 kg
• Static double stacking: 600 kg
• Load volume: 950 litres
• Material: PP
• Logistics: 10 pallet places (120x80x240 cm)

Food grade pallet container. Available with or without cargo hatch.

Wall height can be customized to customer requirements.

Available in two L-shaped or U-shaped sections instead of a whole wall section.

• Outer dimensions: 1200x1000x940 mm
• Inner dimensions: 1170x970x750 mm
• Wall height: 780 mm
• Height when folded: 230 mm
• Weight: 40 kg
• Dynamic load: 1000 kg
• Static load: 1000 kg
• Static double stacking: 600 kg
• Load volume: 820 litres
• Material: PP
• Logistics: 10 pallet places (120x100x240 cm)

Food grade pallet container. Available with or without cargo hatch.

Wall height can be customized to customer requirements.

Available in two L-shaped or U-shaped sections instead of a whole wall section.

• Outer dimensions: 1200x1000x1200 mm
• Inner dimensions: 1170x970x1010 mm
• Wall height: 1040 mm
• Height when folded: 230 mm
• Weight: 43 kg
• Dynamic load: 1000 kg
• Static load: 1000 kg
• Static double stacking: 600 kg
• Load volume: 1050 litres
• Material: PP
• Logistics: 10 pallet places (120x100x240 cm)

Food grade pallet container. Available with or without cargo hatch.

Wall height can be customized to customer requirements.

Available in two L-shaped or U-shaped sections instead of a whole wall section.

• Outer dimensions: 1200x1000x1200mm
• Inner dimensions: 1170x970x1010mm
• Wall height: 1040mm
• Height when folded: 230mm
• Weight: 48kg
• Dynamic load: 1000kg
• Static load: 1000kg
• Static double stacking: 670kg
• Load volume: 1050 liter
• Material walls: PP 4000g/m2
• Weight only walls: 18kg
• Logistics: 10st/pallet places(120x100x240cm)
• Food grade pallet container
• Can only be obtained without cargo hatch

Wall height can be customized to customer requirements.  Can only be delivered with full wall around to manage the above dynamic loading.

Different design of walls Pallet Container PS:
